Description

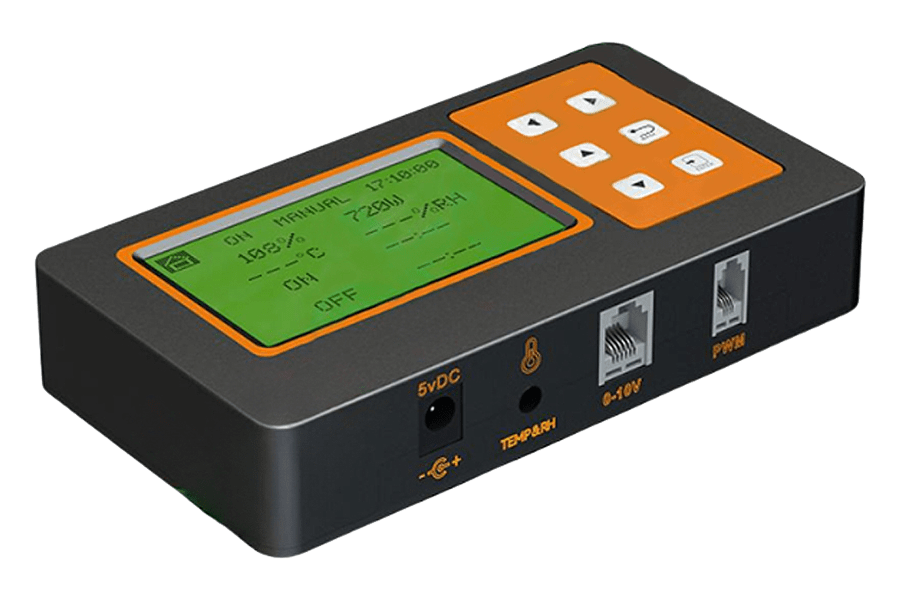

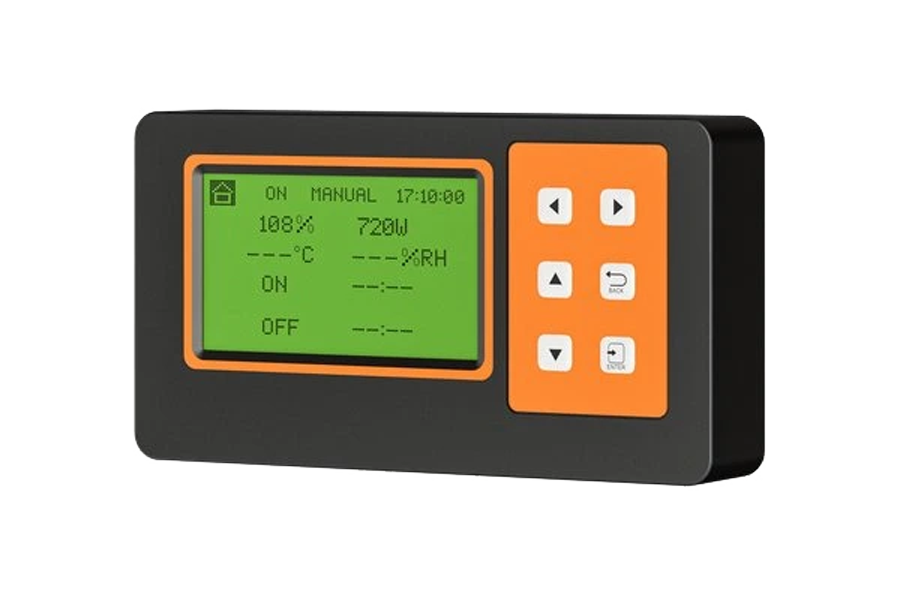

Controller for LED Grow Lights with 0-10V or PWM
This Universal LED Controller is suitable for controlling LED grow lights with both PWM and 0-10V RJ12 connections. The LED Controller is a powerful tool for anyone looking for an efficient and reliable way to manage plant growth conditions. With user-friendly features and advanced sensors, this controller ensures an optimal growing environment, allowing you to achieve better yields and healthier plants.
Features and Benefits
1. Simple LED Fixture Connection

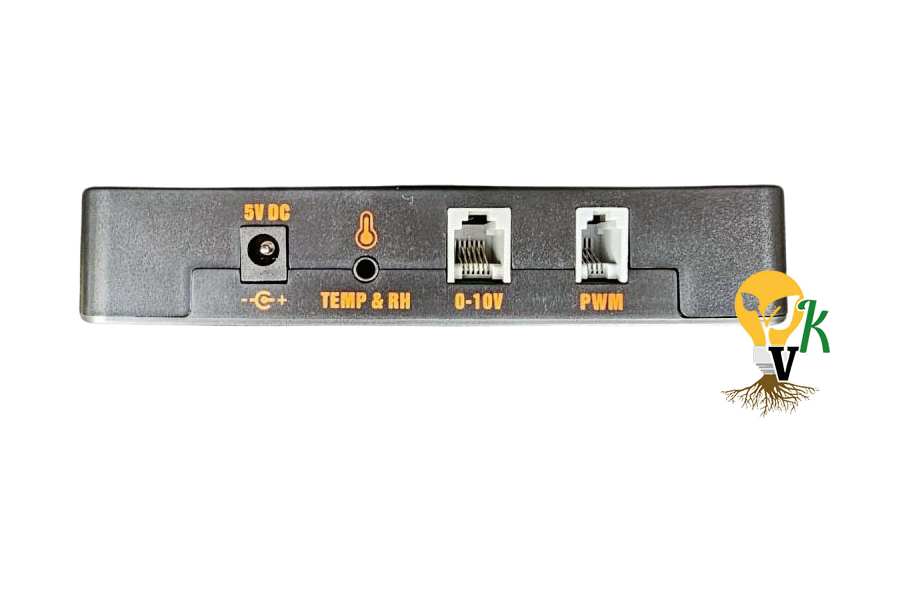

- Externally Controllable LEDs: Make sure the dials are set to "EXT" (external control). Connect one end of the cable to the "0-10V" or "PWM" port on the controller and the other end to the first LED fixture. Use the included interconnect cables to connect up to 30 LED fixtures in series, depending on the capacity of the drivers or ballasts.
2. Advanced Sensor Connections
- Temperature and Humidity: Place the included sensor in a suitable location, such as at an average leaf height between plants. Avoid placing it against walls or in direct airflow, and ensure the sensor is kept away from direct heat sources. Connect the "TEMP&RH" port to the temperature and humidity sensor for accurate climate monitoring.
3. Full Control and Security
- Easy Installation: Plug the power adapter connector into the LED Controller and then plug the adapter into a wall outlet. This ensures a safe and efficient power supply. Connect the light(s) to the Controller.

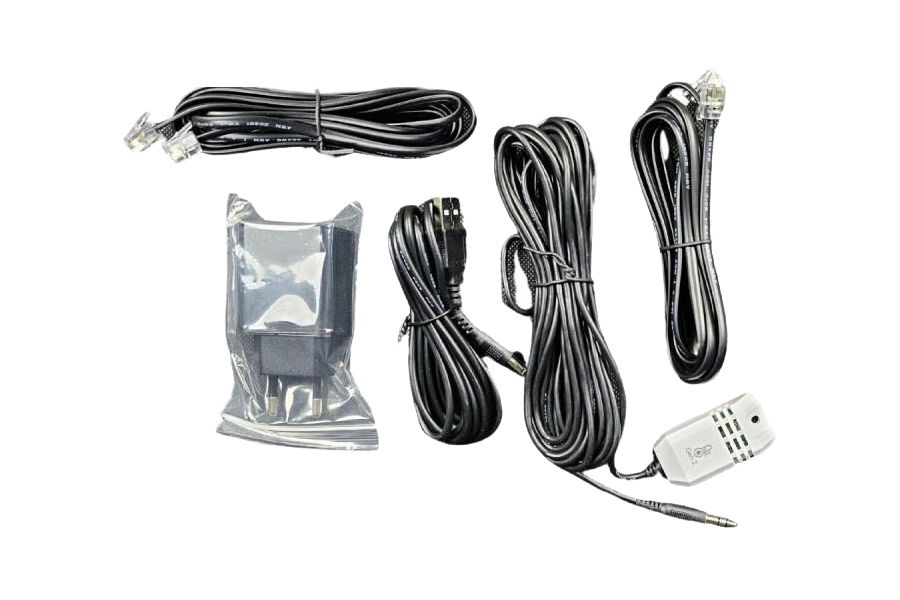

Package contents
- 1x LED Controller: The brain behind your grow light management system.
- 1x 0-10V Cable: Extension cord with RJ12 connection for 0-10V LED luminaires.
- 1x PWM Cable: Extension cable with RJ12 connection for PWM LED luminaires.
- 1x Power Adapter: For reliable power supply.
- 1x Temperature and Humidity Sensor: For precise monitoring.
- 1x AC Power Cord: For connection to the mains.
- 2x Screws and 2x Plugs: For sturdy wall mounting of the Controller.
